Game Accelerator – Detect and optimize gaming streams, to ensure your gaming stays immersive
Game Protector – Keep your accounts and documents safe with a free lifetime subscription of Homecare™ security system.7
Game Statistics – Real-time latency, game duration and network resource allocation in a glance with fine-tuned UI.
Ultra Connectivity - 2.5 Gbps WAN port and eight Gigabit LAN ports, 2 USB 3.0 in Type A and Type C provide extensive connectivity.6
Powerful Processing – 1.8 GHz Quad-Core CPU and 3 coprocessors ensure your network performance always at peak run.
Highly Efficient – OFDMA increases the avg. throughput and reduces the lag.2
Easy and Smart – Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.

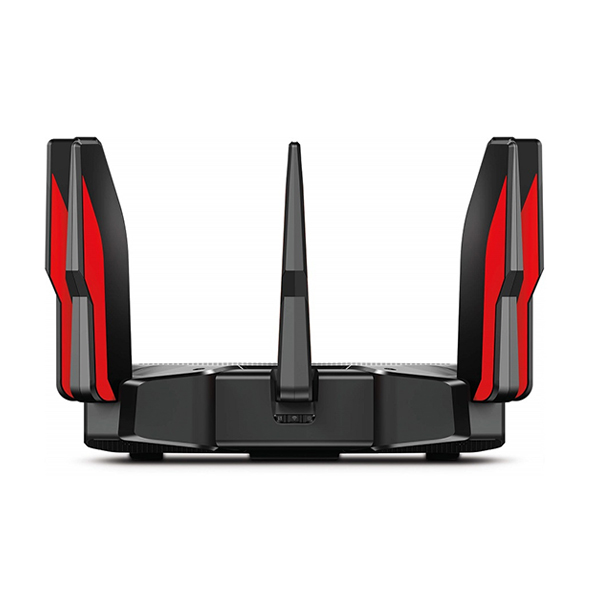

TP-Link AX11000 Next-Gen Tri-Band Gaming Router
AX11000 Next-Gen Tri-Band Gaming Router
LIGHTNING ATTACK TO DEFEAT LATENCY
More connected devices shall bring more fun rather than dragging the performance.1 Revolutionary OFDMA is introduced to improve average throughput by 4× and cut the latency.2 3 Take advantage of incredibly low latency to demolish your enemies, with your team crew together.
CRUSH THE LAG WIN THE GAME
GAME ACCELERATOR automatically detects and optimizes gaming streams, to ensure your gaming stays immersive, and keep your network as fast as your reaction speed.
KNOW YOUR NETWORK
GAME STATISTICS shows the real-time latency, game duration and system utilization at a glance in a refreshed dashboard with fine-tuned UI elements, puts total control at your fingertips.
KEEP ALL ELEMENTS SECURITY
GAME PROTECTOR keeps your accounts and system safe. This free lifetime subscription of the HomeCareâ„¢ security system delivers comprehensive antivirus protection that ensures your total security while gaming online.
GAME ON THE FAST LANE
GAMING BAND—a dedicated gaming band for your game rigs, makes your online games and your families' Netflix 4K streaming no more competitor.
DFS expands available channel automatically, get on the more vacant lane and boost the game.
BATTLE-TESTED HARDWARE
Equipped with 1.8 GHz Quad-Core CPU and 1 GB of RAM to handle huge throughput and crush the lag. Link Aggregation and USB 3.0 type C and type A ports ensure virtually any device can connect to your home network.
READY FOR TODAY AND TOMORROW'S SMART HOME
With the growing number of devices in today's home, everyone deserves a smarter and easier way to bring all your products together. Utilize Amazon Alexa to control everything via voice commands to enjoy truly intelligent life.
Specifications
WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds
AX11000
5 GHz : 4804 Mbps (802.11ax, HE160)
5 GHz : 4804 Mbps (802.11ax, HE160)
2.4 GHz : 1148 Mbps (802.11ax)
WiFi Range
4-6 Bedroom Houses
8 × Detachable High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
4T4R
Multiple streams in the same band strengthen the fault tolerance in transmission
WiFi Capacity
Very High
Tri-Band : Allocate devices to different bands for optimal performance
4×4 MU-MIMO : Simultaneously communicates with multiple MU-MIMO clients
OFDMA : Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness : Improves network efficiency by limiting excessive occupation
DFS : Access an extra band to reduce congestion
12 Streams : Connect your devices to more bandwidth
Working Modes
Router Mode
Access Point Mode
HARDWARE
Processor : 1.8 GHz 64 Bit Quad-Core CPU
Ethernet Ports : 1 × 2.5 Gbps WAN Port
8 × Gigabit LAN Ports
Static Link Aggregation (LAG) available with 2× LAN ports
USB Support : 1 × USB-C 3.0 Port
1 × USB-A 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons
Wi-Fi On/Off Button
Power On/Off Button
LED On/Off Button
WPS Button
Reset Button
Power
12 V ⎓ 5 A
SECURITY
WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)
Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeCareâ„¢ Antivirus
Malicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server
OpenVPN
PPTP
SOFTWARE
ProtocolsIPv4
IPv6
Game Center
Game Accelerator
Detects and optimizes gaming streams to keep latency as low as possible
Game Statistics
Check real-time latency, system utilization, and game duration on a redesigned dashboard to tweak every detail
Game Protector
Keep your accounts and system safe with HomeCareâ„¢ antivirus protection
Service Kits
HomeCareâ„¢
Learn More>
Parental Controls
HomeCareâ„¢ Parental Controls
Custom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight
WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service
Game Accelerator QoS
QoS by Device
HomeCareâ„¢ QoS
QoS by Application
Cloud ServiceAuto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP
Address Reservation
DHCP Client List
Server
DDNS
TP-Link
NO-IP
DynDNS
Management
Tether App
Webpage
Check Web Emulator>
PHYSICAL
Dimensions (W×D×H) : 11.3 × 11.3 × 7.2 in
(288 × 288 × 184 mm)
Package Contents
Wi-Fi Router Archer AX11000
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
OTHER
System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications
FCC, RoHS
Environment
Operating Temperature : 0℃~40℃ (32℉ ~104℉)
Storage Temperature : -40℃~70℃ (-40℉ ~158℉)
