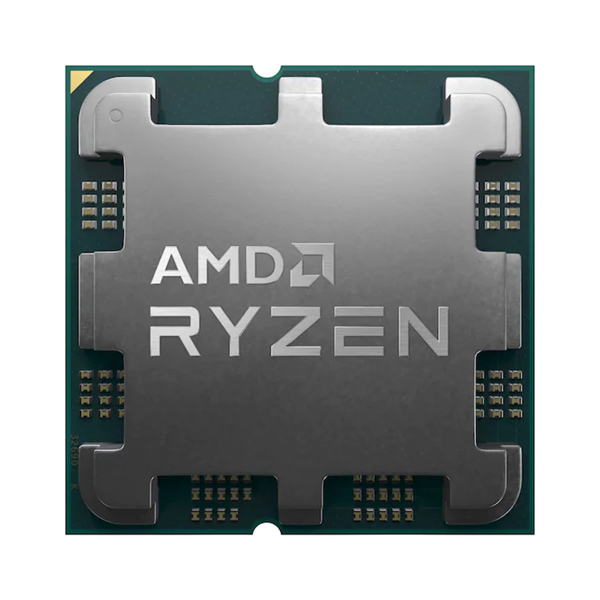

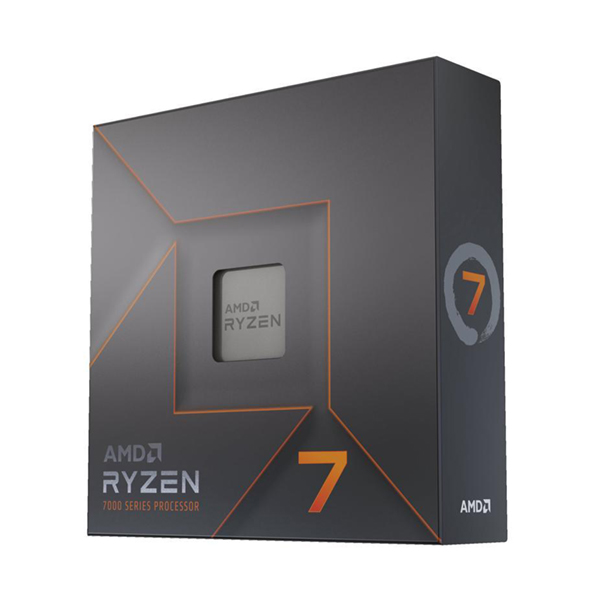

AMD Ryzen 7 7700X 8-Cores AM5 CPU Desktop Processor

• 8 Cores & 16 Threads

• 4.5 GHz Base Clock

• 5.4 GHz Max Boost Clock

• Socket AM5

• 8MB L2 & 32MB L3 Cache

• Integrated AMD Radeon Graphics

• DDR5-6400 Memory

• Unlocked Processor

AMD Ryzen 7 7700X 8-Cores AM5 CPU Desktop Processor

Take your computing to the next level with the Ryzen 7 7700X 4.5 GHz Eight-Core AM5 Processor, which features eight cores and 16 threads to help quickly load and multitask demanding applications. Designed for socket AM5 motherboards using the powerful Zen 4 architecture, this enthusiast-grade Ryzen processor delivers significantly improved performance compared to its predecessor while maintaining high energy efficiency. With a base clock speed of 4.5 GHz and a max boost clock speed of 5.4 GHz in addition to 32MB of L3 Cache, the Ryzen 7 7700X is built to deliver the power needed to smoothly handle tasks ranging from content creation to immersive gaming. You can boost performance further by overclocking this unlocked processor.

Other features include support for PCIe Gen 5 technology to take full advantage of high-bandwidth graphics cards and storage drives. The Ryzen 7 7700X also supports up to 128GB of 6400 MHz DDR5 ECC memory with compatible motherboards, which may be overclocked using AMD EXPO profiles for higher gaming performance. This processor has a 105W TDP (Thermal Design Power) and does not include a cooling solution. This processor also includes integrated Radeon graphics.

Performance Features

Precision Boost 2

AMD Ryzen processors monitor the system's energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.

Precision Boost Overdrive

Precision Boost Overdrive technology takes advantage of your compatible motherboard's design to boost clock speeds higher and for longer periods of time. It also allows you to overclock the processor at the touch of a button.

AMD EXPO Technology

The AMD Extended Profiles for Overclocking (AMD EXPO Technology) provides users with advanced profile settings for memory overclocking with supported modules.

AMD Ryzen Master Utility

Personalized Performance

The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.

System Monitoring

Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.

Specifications

• Platform : Desktop

• Market Segment : Enthusiast Desktop

• Product Family : AMD Ryzenâ„¢ Processors

• Product Line : AMD Ryzenâ„¢ 7 Desktop Processors

• AMD PRO Technologies : No

• Consumer Use : Yes

• Regional Availability : Global

• Former Codename : "Raphael AM5"

• Architecture : "Zen 4"

• # of CPU Cores : 8

• Multithreading (SMT) : Yes

• # of Threads : 16

• Max. Boost Clock : Up to 5.4GHz

• Base Clock : 4.5GHz

• L1 Cache : 512KB

• L2 Cache : 8MB

• L3 Cache : 32MB

• Default TDP : 105W

• Processor Technology for I/O Die : TSMC 6nm FinFET

• CPU Compute Die (CCD) Size : 71mm²

• I/O Die (IOD) Size : 122mm²

• Package Die Count : 2

• Unlocked for Overclocking : Yes

• AMD EXPOâ„¢ Memory Overclocking Technology : Yes

• Precision Boost Overdrive : Yes

• Curve Optimizer Voltage Offsets : Yes

• AMD Ryzenâ„¢ Master Support : Yes

• CPU Socket : AM5

• Supporting Chipsets

                                                X670E
                                                X670
                                                B650E
                                                B650

• CPU Boost Technology : Precision Boost 2

• Instruction Set : x86-64

• Supported Extensions : AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

• Thermal Solution (PIB) : Not included

• Max. Operating Temperature (Tjmax) : 95°C

*OS Support

                Windows 11 - 64-Bit Edition
                Windows 10 - 64-Bit Edition
                RHEL x86 64-Bit
                Ubuntu x86 64-Bit

*Operating System (OS) support will vary by manufacturer.

Connectivity

• USB Type-C® Support : Yes

• Native USB 3.2 Gen 2 (10Gbps) Ports : 4

• Native USB 3.2 Gen 1 (5Gbps) Ports : 0

• Native USB 2.0 (480Mbps) Ports : 1

• Native SATA Ports : 0

• Native PCIe® Lanes (Total/Usable) : 28/24

• Additional Usable PCIe Lanes from Motherboard

• AMD X670E    12x Gen4

• AMD X670     12x Gen4

• AMD B650E     8x Gen4

• AMD B650      8x Gen4

• NVMe Support : Boot, RAID0, RAID1, RAID10

• Memory Channels : 2

• Max. Memory : 128GB

• System Memory Subtype : UDIMM

• Max Memory Speed : 1x1R    5200 MT/s

                                                   1x2R    5200 MT/s
                                                   2x1R    3600 MT/s
                                                   2x2R    3600 MT/s

• ECC Support : Yes (Requires mobo support)

Graphics Capabilities

• Integrated Graphics : Yes

• Graphics Model : AMD Radeonâ„¢ Graphics

• Graphics Core Count : 2

• Graphics Frequency : 2200 MHz

• GPU Basem : 400 MHz

• USB Type-C® DisplayPortâ„¢ Alternate Mode : Yes

Product IDs

• Product ID Boxed : 100-100000591WOF

• Product ID Tray : 100-000000591

Key Features

Supported Technologies : AMD EXPOâ„¢ Technology

                                                AMD Ryzenâ„¢ Technologies
