ASUS ROG Rapture GT-AX6000 WiFi 6 Dual-band (2.4 GHz / 5 GHz) Gaming Router - Black

• High-Efficiency WiFi 6 – Ultrafast WiFi 6 dual-band router boosts speed up to 6000 Mbps, with 160 MHz channels for better efficiency and throughput.

• Dual 2.5G Ports – Traffic via 2.5G ports has top priority; flexible WAN/LAN network port configurations.

• Extreme Quad-Core CPU Power – High-performance 2.0 GHz quad-core 64-bit CPU takes computational capabilities to the next level.

• Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage.

• Triple-Level Game Acceleration – Accelerate game traffic every step of the way from device to game server.

ASUS ROG Rapture GT-AX6000 WiFi 6 Dual-band (2.4 GHz / 5 GHz) Gaming Router - Black

GT-AX6000 Dual-Band WiFi 6 (802.11ax) Gaming Router, Dual 2.5G ports, enhanced hardware, WAN aggregation, VPN Fusion, Triple-Level Game Acceleration, free network security and AiMesh support

DON'T STOP THE GAME

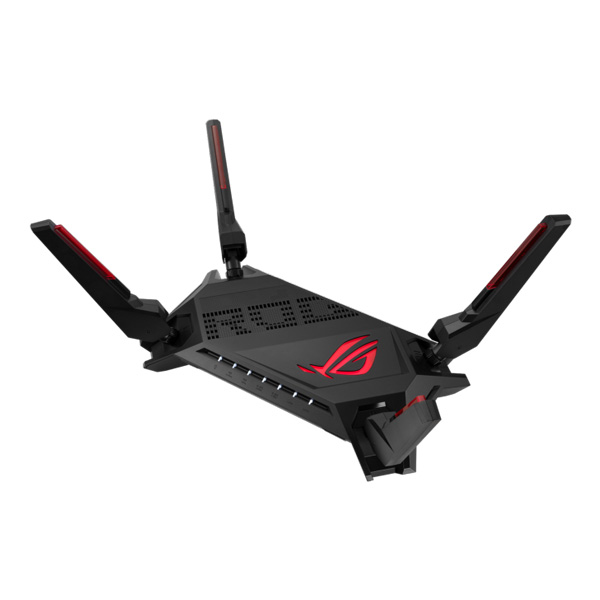

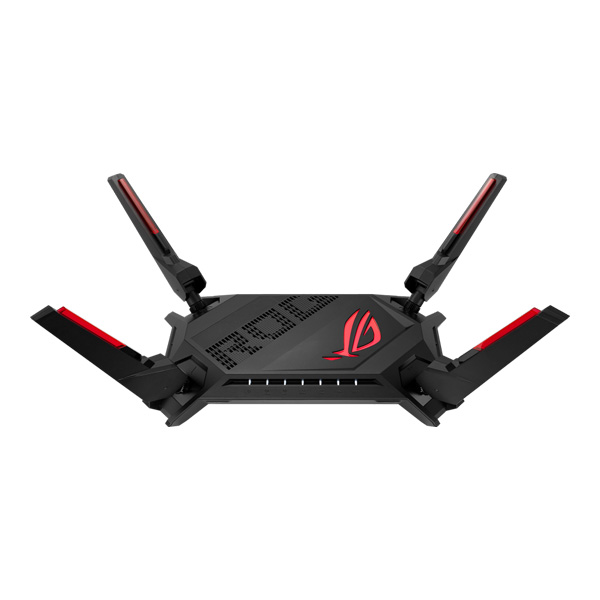

The futuristic ROG Rapture GT-AX6000 gaming router lets you connect more devices, and upgrades your gaming experience to the next level. With WiFi 6 speeds up to 6000 Mbps, it’s always primed for the biggest battles. The awesome styling, with new-look red and black detachable antennas and fully customisable ASUS Aura RGB lighting effects, makes GT-AX6000 a router that demands to be seen!

Flexible network ports functions

Dual 2.5G Network Ports

GT-AX6000 has dual 2.5 Gbps Ethernet ports that support link aggregation and load balancing, giving you the flexibility to give massive bandwidth to connected devices or take advantage of ultra-high-speed internet connections.

Beyond Performance

GT-AX6000 is powered by a 2.0 GHz quad-core 64-bit CPU, giving it the performance to handle even the most demanding gaming network. It delivers maximum network throughput by 18%* for lightning-fast, accelerating data transfers and optimizing your gaming experience.

Expanded Coverage with RangeBoost Plus

ASUS RangeBoost Plus is the latest, most powerful version of our renowned RangeBoost technology, which can improve the coverage and WiFi performance significantly compare to other models without RangeBoost. By using a next-gen flagship Broadcom WiFi chipset and CPU, combined with ASUS RF technology and other exclusive ASUS technologies, RangeBoost Plus leverages multiple upgraded ASUS features that improve WiFi signal range and overall coverage by up to 38%*.

Whole-Home coverage

ASUS AiMesh gives you the flexibility to create a true whole-home WiFi network. You can put your old ASUS AiMesh-compatible router to good use as a mesh node to broaden your network's coverage to eliminate dead spots, and bring superfast, reliable WiFi to your entire home.

Triple-level Game Acceleration

GT-AX6000 boosts your gaming traffic every step of the way, from your PC all the way to the game server. The exclusive triple-level game acceleration stabilises your connections to prevent jitter, reduce lag, lower ping and increase speed for amazing gaming experiences.

Game without Boundaries

VPN Fusion lets you run both a VPN and an ordinary internet connection — simultaneously! So even if other network users need to use a VPN, you can still enjoy maximum gaming speeds.

Boost your game with one click

Minimise lag and latency for mobile gaming with just a tap on the ASUS Router app.

3-Step Port Forwarding

Join your clan smoothly and quickly GT-AX6000's OpenNAT feature, with only three steps needed to configure port forwarding. Say goodbye to frustrating and complicated procedures!

Game console Prioritisation

GT-AX6000 plays great with any game consoles, including PS5®, Xbox X® and Nintendo Switch®. Instantly prioritise a console by connecting it to the dedicated Gaming Port. No complex configuration is needed, just connect your console to the special LAN-1 port for a fast, stable connection that's always at the head of the queue.

Complete Security for Everyone

For total peace of mind, GT-AX6000 includes ASUS AiProtection Pro, including the latest WPA3 security protocol and advanced Parental Controls. With automatic, regularly updated security signatures to protect all your devices and personal data from internet threats.

Make Free WiFi Secure, Wherever You Are

The free public WiFi you find in coffee shops, restaurants, hotels, airports and so on is rarely secure. ASUS Instant Guard uses VPN technology to create a secure data tunnel to your GT-AX6000, adding rock-solid security to any public WiFi connections you use.

Specifications:-

Model Name

• GT-AX6000

Network Standard

• IEEE 802.11a

• IEEE 802.11b

• IEEE 802.11g

• IEEE 802.11n

• IEEE 802.11ac

• IEEE 802.11ax

• IPv4

• IPv6

Product Segment

• AX6000 ultimate AX performance

AX technology

• Yes

Data Rate

• 2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps

• 5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

• External antenna x 4

• 2.4GHz 4x4

• 5GHz 4x4

Processor

• 2.0 GHz quad-core processor

Memory

• 256 MB Flash, 1 GB RAM

Boosts speed

• OFDMA (Orthogonal Frequency Division Multiple Access),

• Beamforming: standard-based and universal,

• 1024-QAM high data rate,

• 20/40/80/160 MHz bandwidth,

Operating Frequency

• 2.4G Hz / 5 GHz

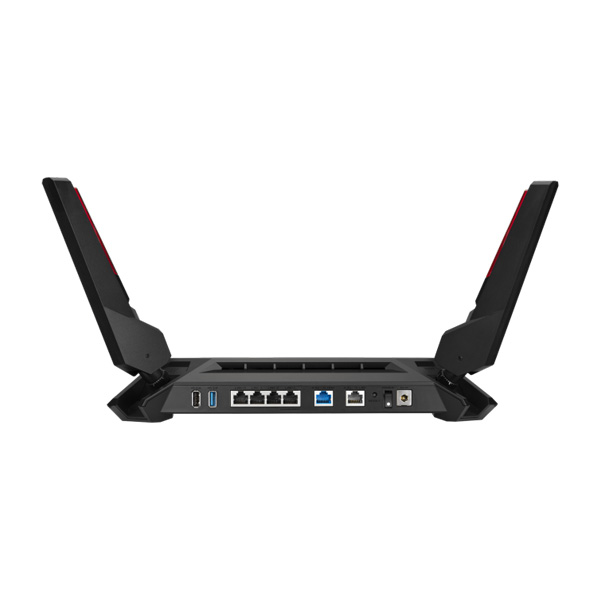

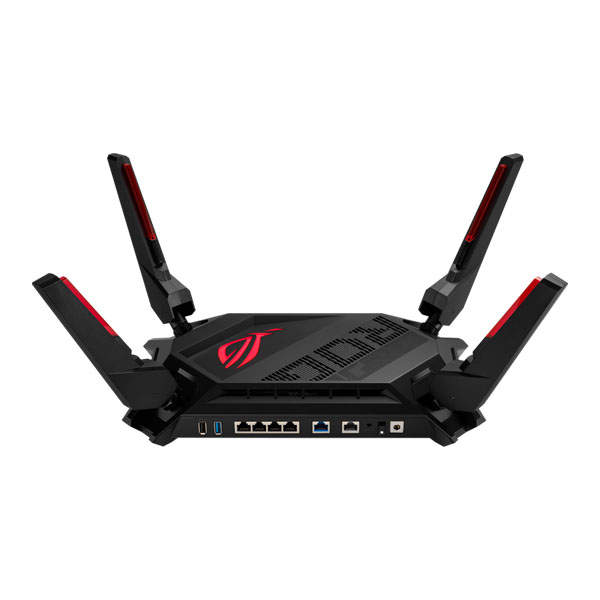

Ports

• RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1,

• RJ45 for 2.5 Gigabits BaseT for LAN x 1,

• RJ45 for Gigabits BaseT for LAN x 4,

• USB 3.2 Gen 1 x 1,

• USB 2.0 x 1

Button

• WPS Button,

• Reset Button,

• Power Button,

• LED Control Button

LED Indicator

• Power x 1

• 2.4GHz x 1

• 5GHz x 1

• 2.5G WAN x 1

• 2.5G LAN x 1

• LAN x 1

• WPS x 1

Power Supply

• AC Input : 110V~240V(50~60Hz)

• DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current

Package content

• GT-AX6000 WiFi 6 Dual-Band Gaming Router

• RJ-45 cable

• Power Adapter

• Quick Start Guide

Product Weight (g)

• 1121.4 g

AiMesh

• AiMesh

• Primary AiMesh router

• AiMesh node

Router APP

• ASUS Router APP

Game

• Game Boost/acceleration

• ROG_First

• OpenNAT (Game Profile)

• Gaming port

AiProtection

• AiProtection Pro

• Router Security Assessment

• Malicious site blocking

• Two-Way IPS

• Infected Device Prevention and Blocking

Parental Control

• Parental Control

• Parental Control Customized Internet schedule

Traffic Control

• Adaptive QoS

• Bandwidth Monitor

• Bandwidth limiter

• Maximum Bandwidth limiter rule : 32

• Traditional QoS

• Maximum Traditional QoS rule : 32

• Traffic Monitor

• Real-time traffic monitor

• Wired Traffic Monitor

• Wireless Traffic Monitor

• Traffic Analyzer

• Traffic analysis period : Daily, Weekly, Monthly

• Website history

Wireless

• IPv6

• MU-MIMO

• WiFi Encryption : Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

• UTF-8 SSID

• Guest Network

• Maximum Guest Network rule : 2.4GHz x3, 5GHz x3

• Guest Network Connection time limit

• Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal

• WPS

• Wi-Fi MAC address filter

• Maximum MAC filters : 64

• Wireless scheduler

• Airtime fairness

• RADIUS Client

• Universal beamforming

WAN

• Explicit beamforming

• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

• Dual WAN

• WAN Aggregation

• 3G/4G LTE dongle

• Android tethering

• Port forwarding

• Maximum port forwarding rule : 64

• Port triggering

• Maximum port triggering rule : 32

• DMZ

• DDNS

• NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

LAN

• DHCP Server

• IGMP snooping

• IPTV

• LAN Link Aggregation

• Manually assign IP address

• Maximum manually assign IP address rule : 64

VPN

• VPN Client L2TP

• VPN Client OVPN

• VPN Client PPTP

• VPN Server IPSec

• VPN Server OVPN

• VPN Server PPTP

• VPN Fusion

USB application

• File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

• Safely Remove disk

• AiCloud

• Download master

• AiDisk

• Media Server

• Time Machine

• Samba Server

• FTP Server

• Shared Folder privileges

Administration

• Operating mode : Accesspoint, AiMeshnode, Mediabridge, Repeater, Router

• Operating system : ASUSWRT

• Free OS upgrade

• Firewall

• Maximum Firewall keyword filter : 64

• Maximum Firewall network service filter : 32

• Maximum Firewall URL filter : 64

• Wake on LAN (WOL)

• SSH

• Configuration backup and restore

• Diagnosis tools

• Feedback system

• System log
