Flexible mounting: easily mount and rearrange SSDs
across the motherboard tray, along the bottom shelf or on the back (for
SSD) with the SSD bracket.
Expansion support: motherboard tray cutouts
creatively rearrange space to fit high-end motherboards, extra-long
dual-slot graphics cards and reservoir mounting for DIY cooling .
Clean cabling: all system setups have plenty of space for hidden cable management.
Compact cooling: with the included bracket, the case
supports up to 3 120mm front fans, one 120mm rear fan, and up to 360mm
front radiator for liquid cooling** (360mm radiator requires usage of
the included bracket).
You Decide the Inside: create a design that follows
your personality and preferences. This case is designed to allow users
the freedom to install their components however they want.

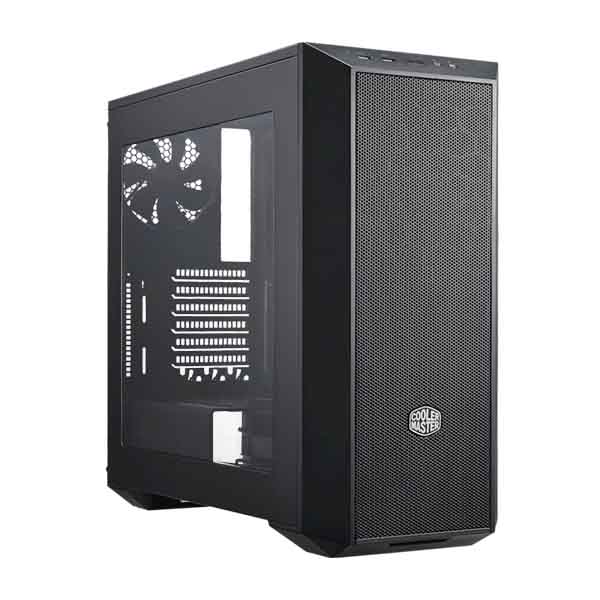

Cooler Master MasterBox 5 ATX Mid-Tower Case
MASTERBOX 5
You Decide the Inside
The MasterBox 5's design and smartly placed tray cut-outs make light work of installing or expanding multiple interior configurations. Remove, slide and rearrange the internal layout to support larger, high-end components, air and DIY water cooling.
Tray cut-outs also allow for the easy mounting and rearranging of SSDs and HDDs across the motherboard tray, along the bottom shelf, or on the back side of the tray (for SSDs).
Expanding the Possibilities
FOR CPU COOLERS
No pushing! There's enough elbow room inside, even for beastly coolers.
Titans have a place inside too. Or your next VR-ready GeForce 1080.
The uniquely modular design of the MasterBox creates space where there usually isn't. The case supports
1.Three 120mm fans
2.Four fans with use of optional front bracket

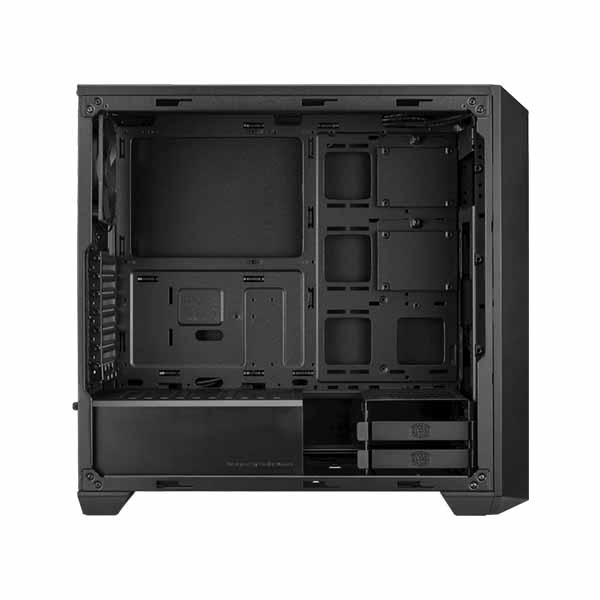

Internal Configuration
YOUR LIQUID COOLING SET-UP
The uniquely modular design of the MasterBox creates space to fit the biggest DIY cooling contraptions.*
All system setups have hidden space for cable management
Challenge the confines of the MasterBox 5 by creating intuitive and flexible layouts for components and cables, large or small. Then comes the easy part:building.
Specifications
Model Number : MCY-B5S1-KWYN-04
Color(s) : Black
Materials : Steel body, Plastic mesh bezel, Steel body (MCY-B5P2-KWGN-00), Plastic front cover (MCY-B5P2-KWGN-00), Tempered glass panel (MCY-B5P2-KWGN-00)
Dimensions (L x W x H) : 500 x 220 x 475 mm
Motherboard Support : ATX, Micro ATX, Mini ITX
Expansion Slots : 7
5.25" Drive Bays : Cages sold separately (MCY-B5S1-KKNN-01), 2 (MCY-B5S1-KWYN-02), Cages sold separately (MCY-B5S1-KWNN-03), 2 (MCY-B5S1-KWYN-04), 2 (MCY-B5S1-KKYA60-05)
Fan Support - Front : 2x 120/140mm (MCY-B5S1-KKNN-01, MCY-B5S1-KWYN-02, MCY-B5S1-KWYN-04, MCY-B5S1-KKYA60-05), 3x 120/140mm (MCY-B5S1-KWNN-03, MCY-B5S1-KWYN-04)
Fan Support : 3x 120mm / 2x 140mm (MCY-B5P2-KWGN-00)
Fan Support - Top : 1x 120mm, 1x 140mm
Fan Support - Rear : 1x 120mm
Liquid Cooling Support - Front : 240mm, 280mm, 240mm (MCY-B5P2-KWGN-00), 280mm (MCY-B5P2-KWGN-00), 360mm (MCY-B5P2-KWGN-00)
